Curb Mount Polycarbonate Skylights
Kennedy manufactures four main categories of curb mount polycarbonate skylights in 11 standard sizes to accommodate all roofing systems including a hurricane rated model.
CM
Curb Mount
View Skylight
CMA Curb Mount
Aluminum
View Skylight
HCMA
Hurricane Rated
View Skylight
MD-HCMA Miami-Dade Hurricane Rated
View Skylight
Proudly Made in America
Kennedy glass and polycarbonate skylights are manufactured in America.
10-Year Warranty
Limited warranty against against defects in workmanship and materials.
Florida Building Code Approved
Kennedy skylights meet Florida's rigorous requirements of the Florida Building Code.

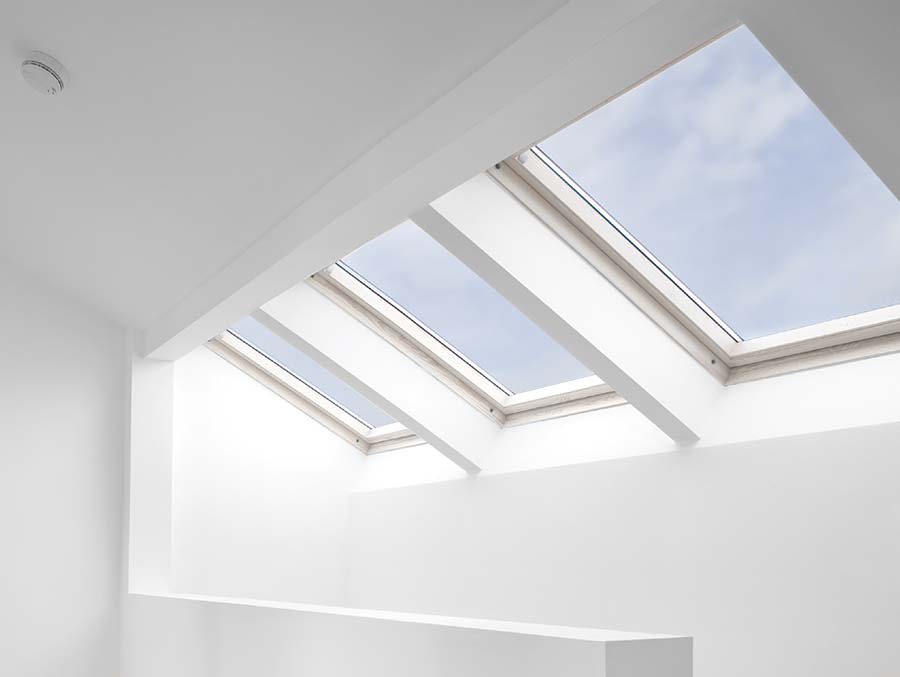

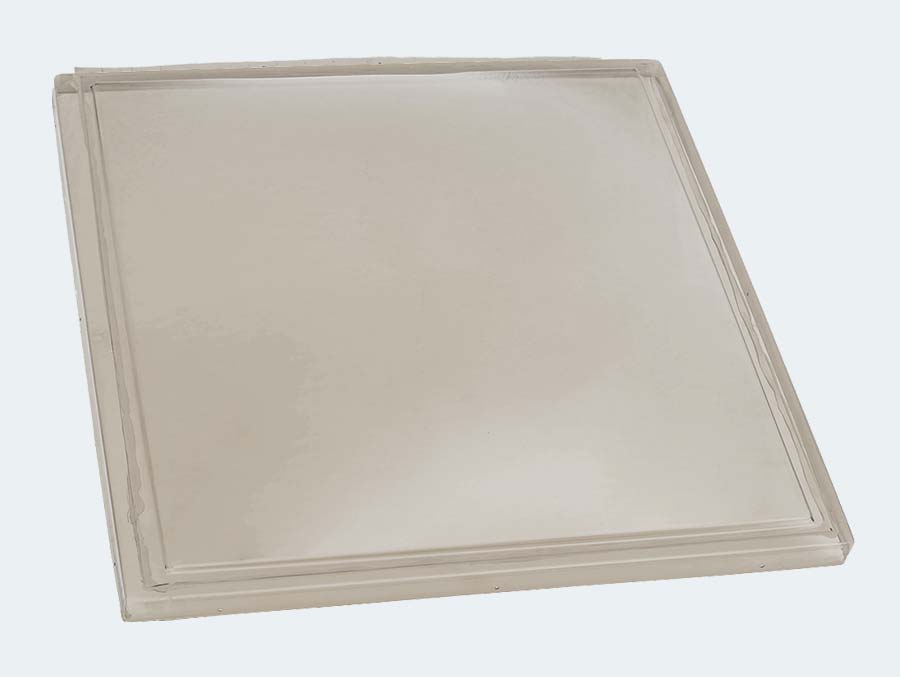

CM Curb Mount Polycarbonate Skylight
The CM skylight mounts to Kennedy AC, ACW or existing curb

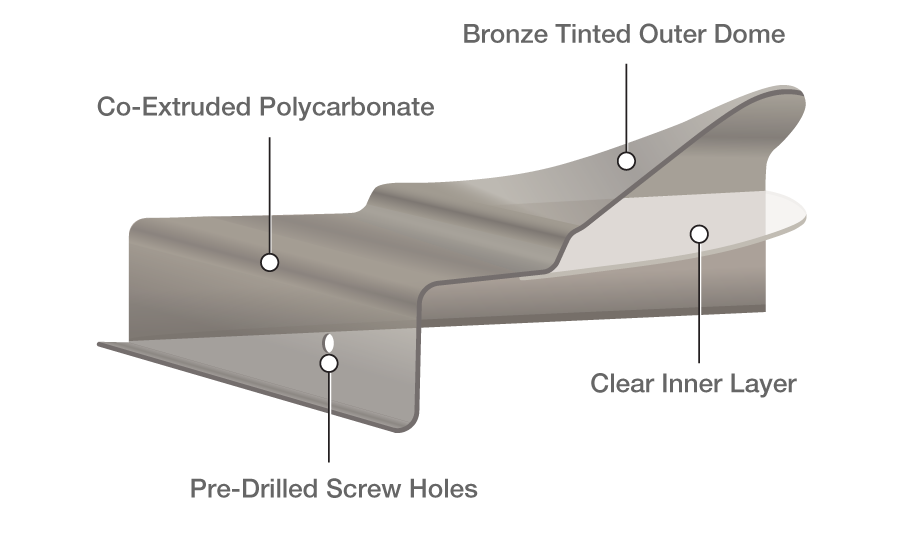

Co-Extruded Polycarbonate
Highly impact resistant - virtually unbreakable. 30x more impact resistant than acrylic and 250x impact resistant more than glass.
Double Domed
Low profile bronze tinted outer layer and clear inner panel.
Pre-drilled
Seamless polycarbonate curb constructed with pre-drilled screw holes for easy installation.
CM Skylight Key Features
- Mounts to Kennedy Aluminum Curb (AC), Aluminum White Wood Curb (ACW) or existing curb Learn more about Kennedy Curbs
- Sized to fit standard US truss and rafter framing
- Includes pre-drilled screw holes for easy, leakproof installation
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Double-domed - Bronze tinted outer dome with clear inner panel
- Resists temperature extremes from -60°F to +250°F
- High clarity and light transmission and blocks harmful UV radiation
- 30-times more impact resistant than acrylic skylights
Certifications & Warranty
- Meets the stringent requirements of the Florida Building Code (#15592.1)
- Class V2 Fire Rated and NAMI Participant (Quality Assurance Program)
- 10-Year limited warranty against defects in workmanship and materials
CM models are manufactured 1" larger than the outside curb dimension to allow for flashing material. Example: 2246CM actual outside curb dimensions = 26.5" x 50.5"
 |
 |
 |
 |
 |
|
| Model Number | 1414CM | 1422CM | 1430CM | 1446CM | 2222CM |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
 |
 |
 |
 |
 |
 |
| 2230SFA | 2246CM | 2269CM | 3030CM | 3046CM | 4646CM |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |

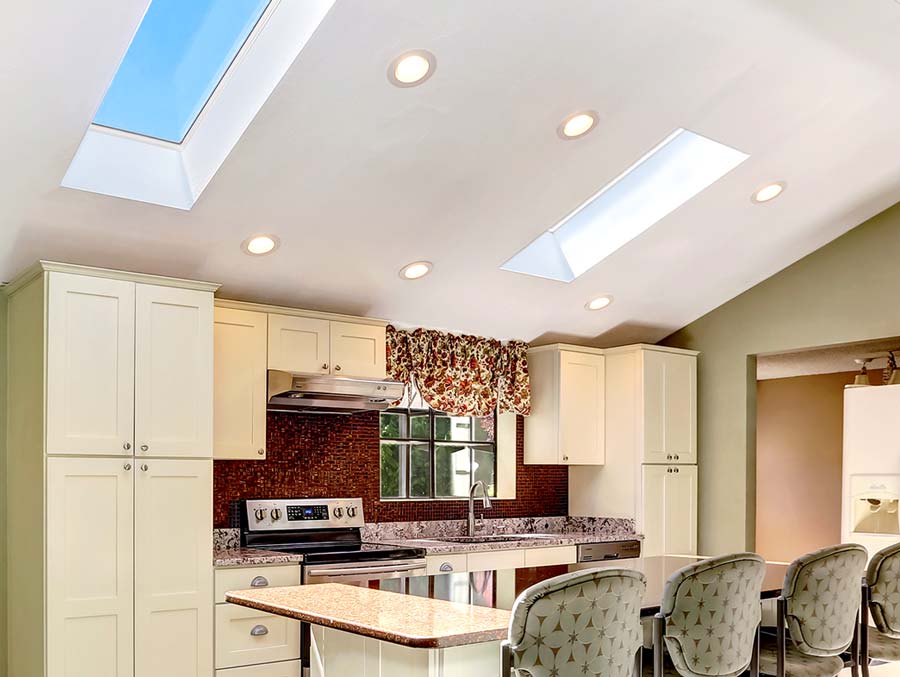

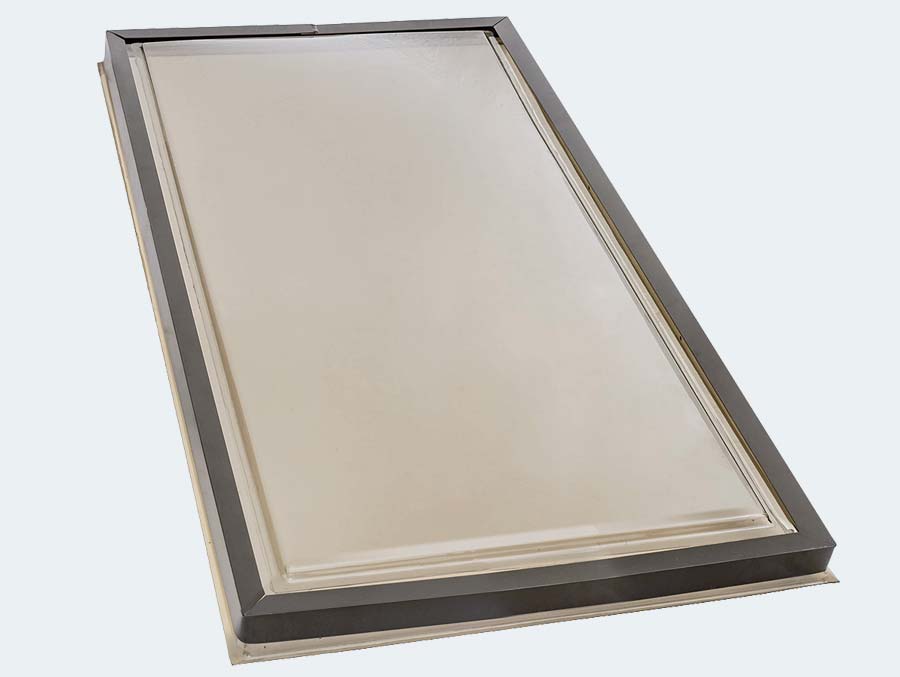

CMA Curb Mount Aluminum Polycarbonate Skylight
The CMA skylight features an aluminum frame for added durability

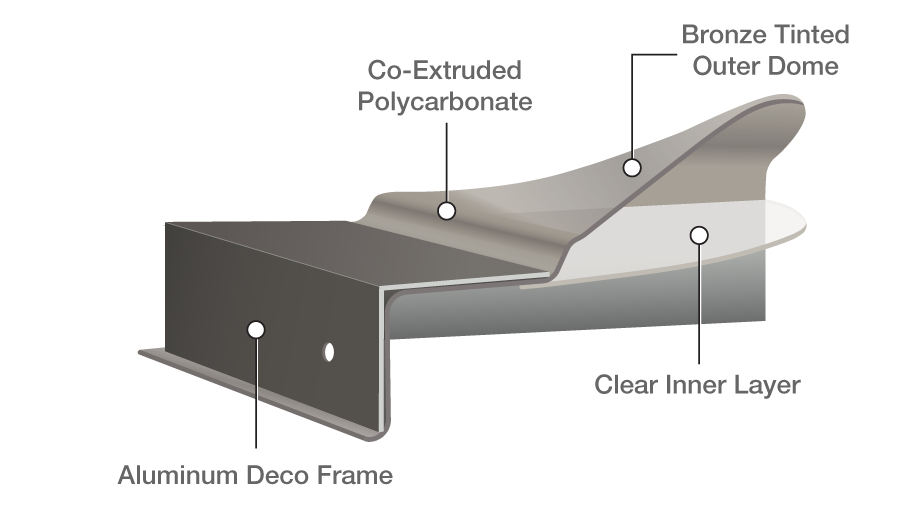

Co-Extruded Polycarbonate
Highly impact resistant - virtually unbreakable. 30x more impact resistant than acrylic and 250x impact resistant more than glass.
Double Domed
Low profile bronze tinted outer layer and clear inner panel.
Aluminum Deco Frame
Heavy-duty aluminum frame with welded corners features pre-drilled screw holes for easy installation.
CMA Skylight Key Features
- Mounts to Kennedy Aluminum Curb (AC), Aluminum White Wood Curb (ACW) or existing curb Learn more about Kennedy Curbs
- Sized to fit standard US truss and rafter framing
- Includes pre-drilled screw holes for easy, leakproof installation
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Double-domed - Bronze tinted outer dome with clear inner panel
- Resists temperature extremes from -60°F to +250°F
- High clarity and light transmission and blocks harmful UV radiation
- 30-times more impact resistant than acrylic skylights
Certifications & Warranty
- Meets the stringent requirements of the Florida Building Code (#15592.1)
- Class V2 Fire Rated and NAMI Participant (Quality Assurance Program)
- 10-Year limited warranty against defects in workmanship and materials
CMA models are manufactured 1" larger than the outside curb dimension to allow for flashing material. Example: 2246CMA actual outside curb dimensions = 26.5" x 50.5"
|
|
|
|
|
|
| Model Number | 1414CMA | 1422CMA | 1430CMA | 1446CMA | 2222CMA |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
|
|
|
|
|
|
| 2230CMA | 2246CMA | 2269CMA | 3030CMA | 3046CMA | 4646CMA |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |

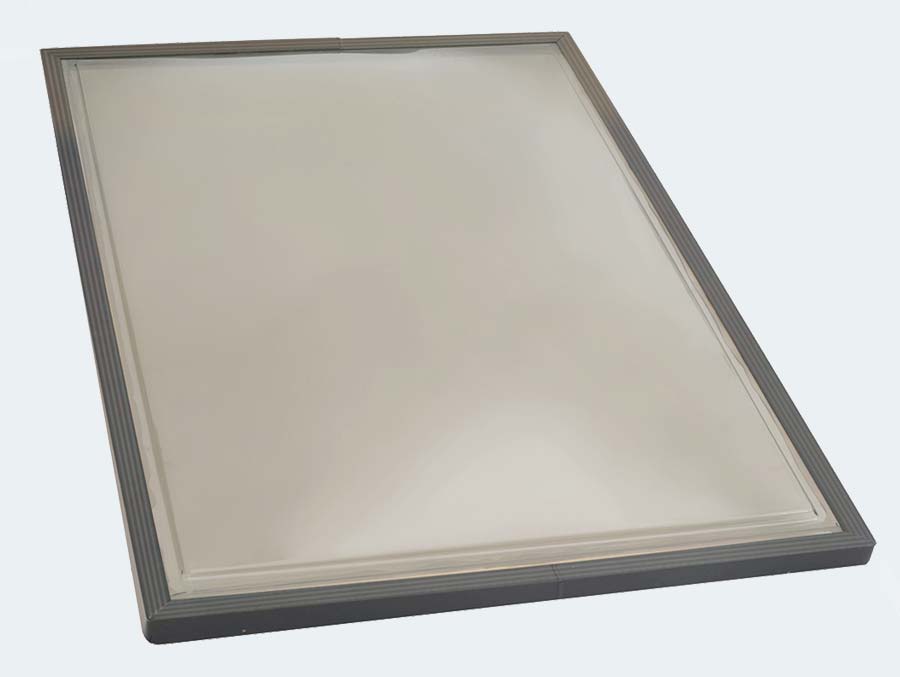

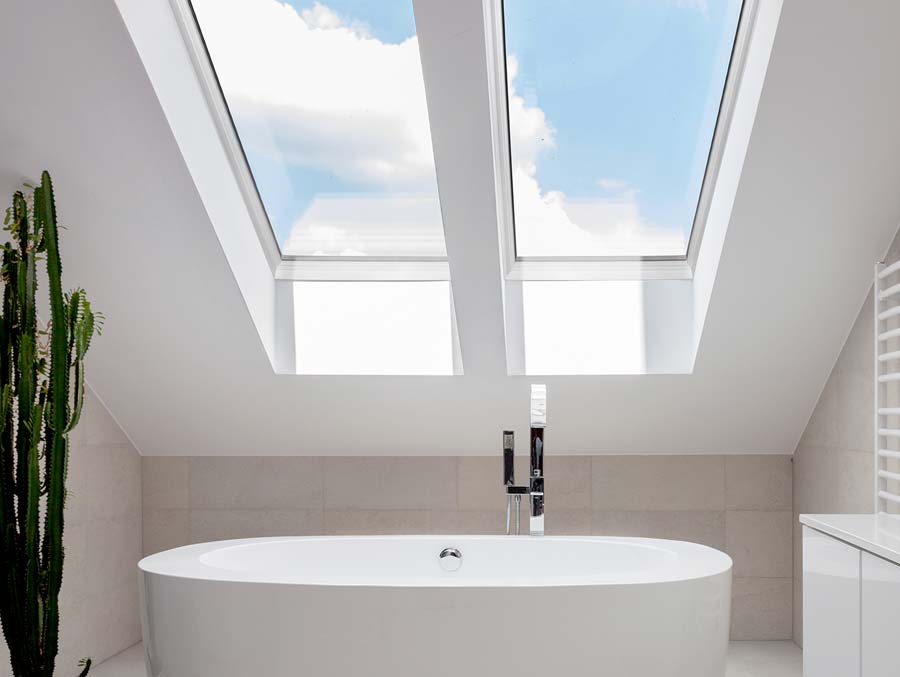

HCMA Hurricane Rated Curb Mount Aluminum
The HCMA skylight has been tested and approved for hurricanes and extreme weather

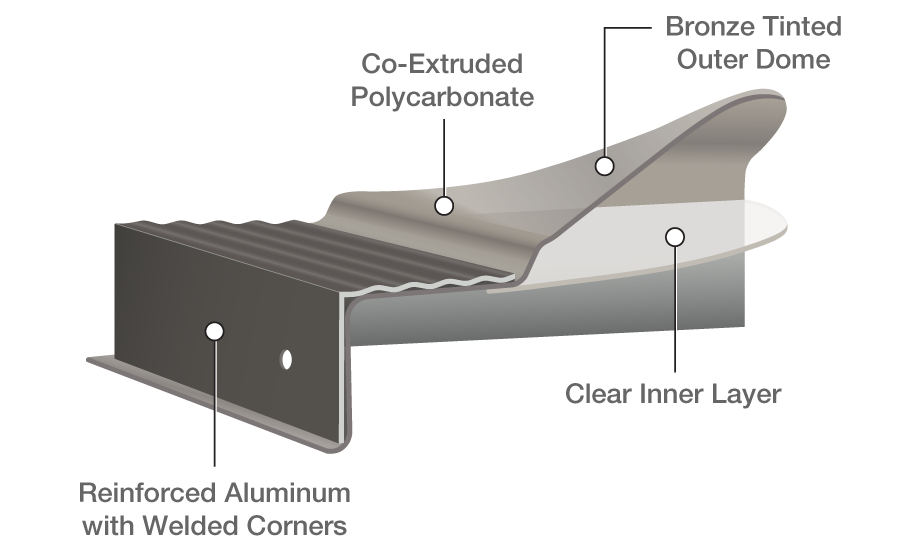

Co-Extruded Polycarbonate
Highly impact resistant - virtually unbreakable. 30x more impact resistant than acrylic and 250x impact resistant more than glass.
Double Domed
Low profile bronze tinted outer layer and clear inner panel.
Reinforced Aluminum Deco Frame
Reinforced aluminum frame with welded corners for superior durability. Frame has pre-drilled screw holes for easy installation.
HCMA Skylight Key Features
- Mounts to Kennedy Aluminum Curb (AC), Aluminum White Wood Curb (ACW) or existing curb Learn more about Kennedy Curbs
- Sized to fit standard US truss and rafter framing
- Includes pre-drilled screw holes for easy, leakproof installation
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Double-domed - Bronze tinted outer dome with clear inner panel
- Resists temperature extremes from -60°F to +250°F
- High clarity and light transmission and blocks harmful UV radiation
- 30-times more impact resistant than acrylic skylights
Certifications & Warranty
- Meets the stringent requirements of the Florida Building Code (#15592.1)
- Class V2 Fire Rated and NAMI Participant (Quality Assurance Program)
- 10-Year limited warranty against defects in workmanship and materials
HCMA models are manufactured 1" larger than the outside curb dimension to allow for flashing material. Example: 2246HCMA actual outside curb dimensions = 26.5" x 50.5"
|
|
|
|
|
|
| Model Number | 1414HCMA | 1422HCMA | 1430HCMA | 1446HCMA | 2222HCMA |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
|
|
|
|
|
|
| 2230HCMA | 2246HCMA | 2269HCMA | 3030HCMA | 3046HCMA | 4646HCMA |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |

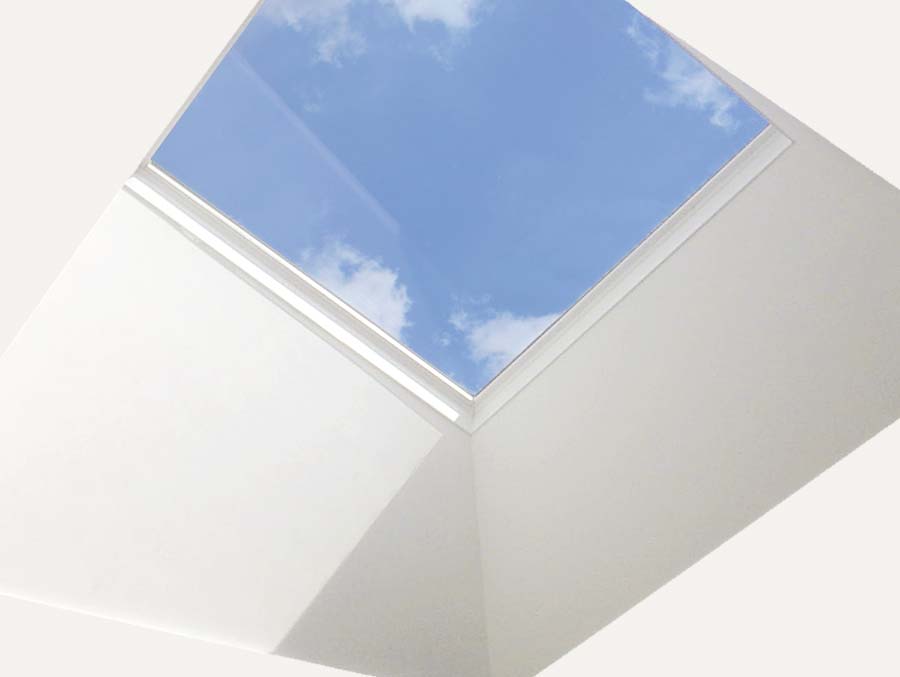

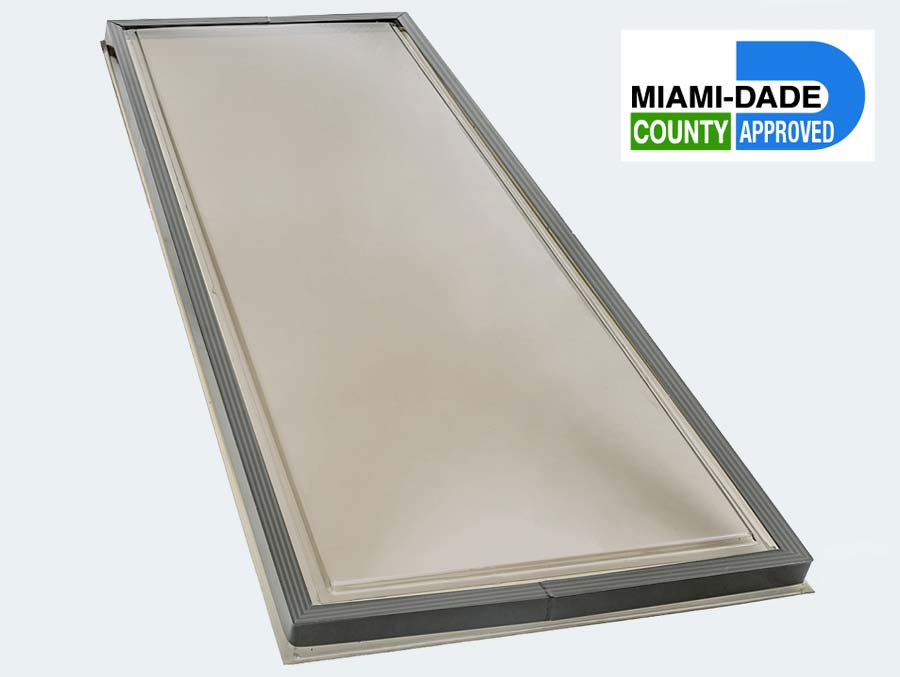

MD-HCMA Miami-Dade Hurricane Rated Curb Mount
The MD-HCMA Skylight has undergone rigorous missile impact, wind and water infiltration testing and is approved for all hurricane zones.
Co-Extruded Polycarbonate
Highly impact resistant - virtually unbreakable. 30x more impact resistant than acrylic and 250x impact resistant more than glass.
Double Domed
Low profile bronze tinted outer layer and clear inner panel.
Reinforced Aluminum Deco Frame
Reinforced aluminum frame with welded corners for superior durability. Frame has pre-drilled screw holes for easy installation.
Officially Certified "Hurricane Approved" by Miami-Dade County
The MD-HCMA skylight has undergone intense water pressure testing, large missile impact testing and water infiltration testing and has been certified by the Miami-Dade County building codes to be approved for all hurricane and HVHZ wind zones. Visit Miami-Dade County building approval website.
MD-HCMA Skylight Key Features
- Mounts to Kennedy Aluminum Curb (AC), Aluminum White Wood Curb (ACW) or existing curb Learn more about Kennedy Curbs
- Sized to fit standard US truss and rafter framing with pre-drilled holes
- Double-domed polycarbonate - Bronze tinted outer dome with clear inner panel
- Resists temperature extremes from -60°F to +250°F
- High clarity and light transmission and blocks harmful UV radiation
- 30-times more impact resistant than acrylic skylights
Certifications & Warranty
- Certified as "Hurricane Approved" by Miami-Dade County building code
- Meets the stringent requirements of the Florida Building Code (#15592.1)
- Class V2 Fire Rated and NAMI Participant (Quality Assurance Program)
- 10-Year limited warranty against defects in workmanship and materials
MD-HCMA models are manufactured 1" larger than the outside curb dimension to allow for flashing material. Example: 2246MD-HCMA actual outside curb dimensions = 26.5" x 50.5"
|
|
|
|
|
|
| Model Number | 1414MD-HCMA | 1422MD-HCMA | 1430MD-HCMA | 1446MD-HCMA | 2222MD-HCMA |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
|
|
|
|
|
|
| 2230MD-HCMA | 2246MD-HCMA | 2269MD-HCMA | 3030MD-HCMA | 3046MD-HCMA | 4646MD-HCMA |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |
