CURB MOUNT
Curb Mount Solar Attic Fans

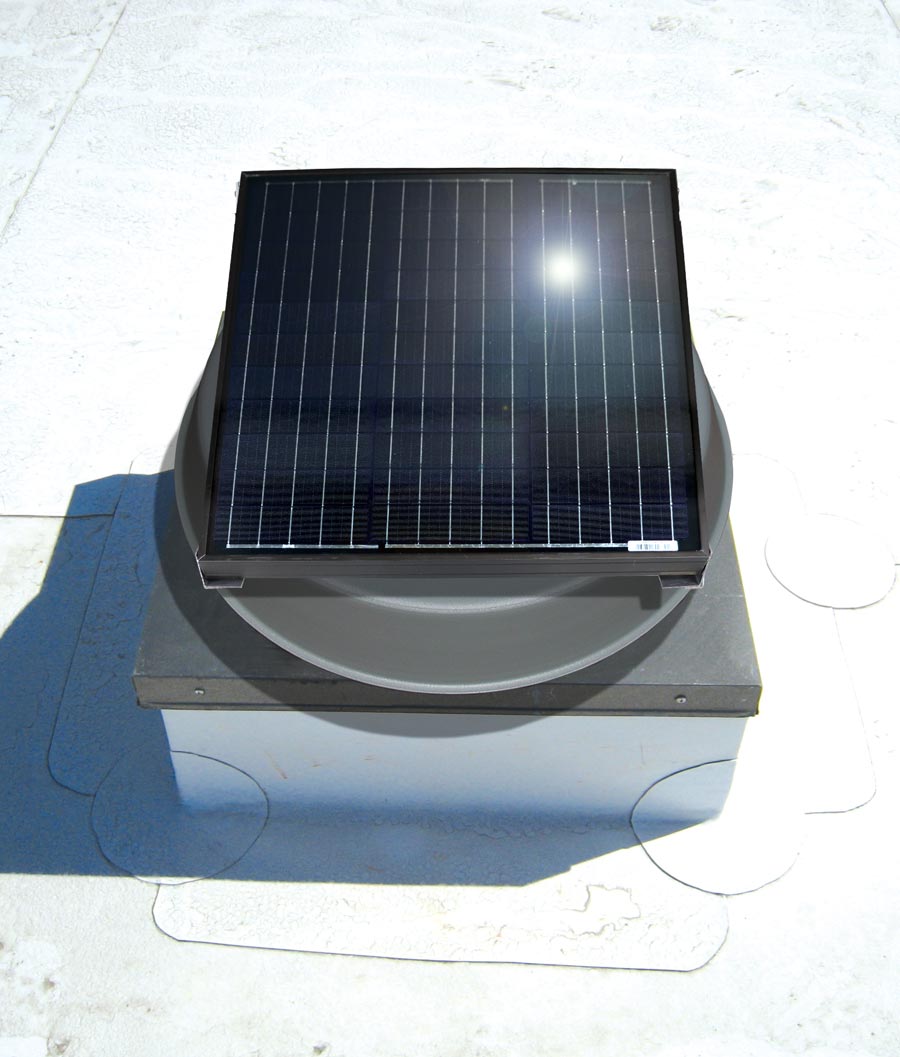

Our curb mounted solar attic fan is mostly used for commercial applications and must be installed over a pre-built curb. It is fully operational right out of the box making installation quick and easy. The unit is available in 4 solar panel sizes: 32, 35, 48 or 65 watts. The main components are the same on all models with the choice of an adjustable, integrated or remotely installed solar panel.
Hurricane Approved
Passed numerous tests including a large missile impact test to earn rating.
Industry's Best Warranty
Limited lifetime against manufacturers defects in material and deterioration.
Florida Building Code Approved
Kennedy solar attic fans meet the rigorous requirements of the Florida Building Code.
ADJUSTABLE PANEL

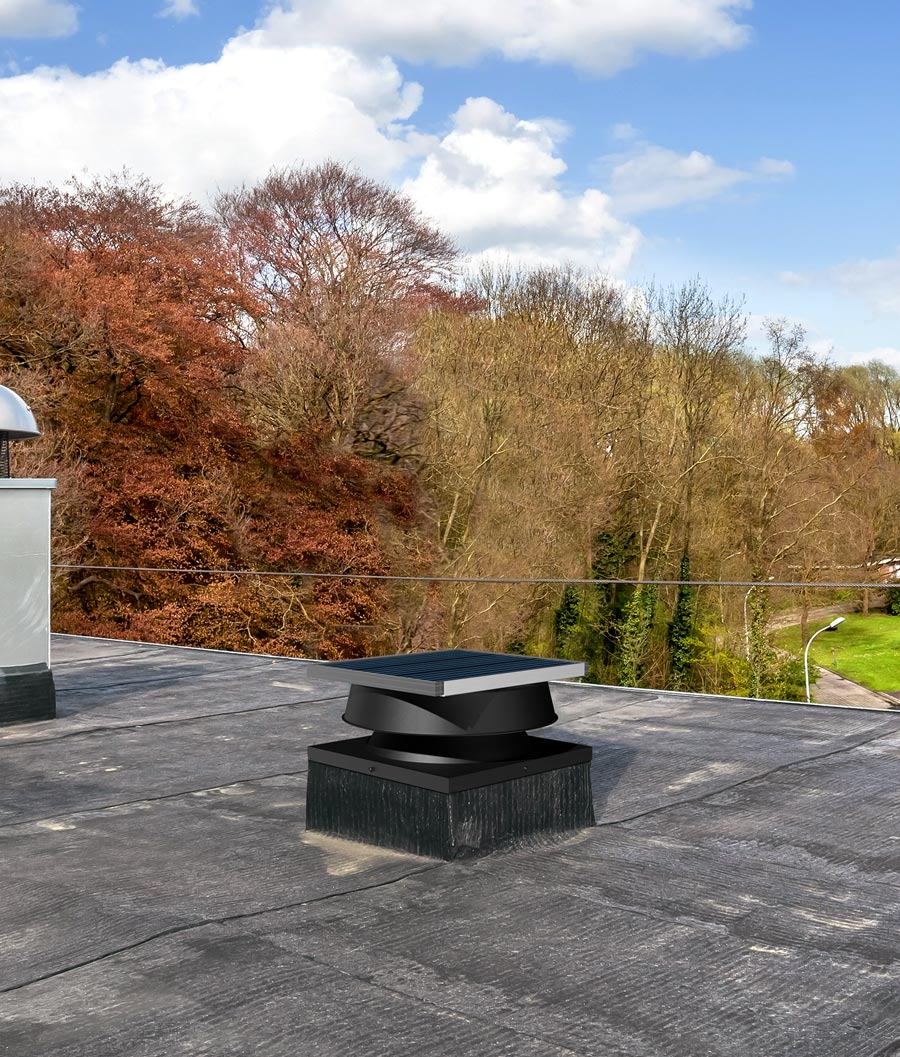

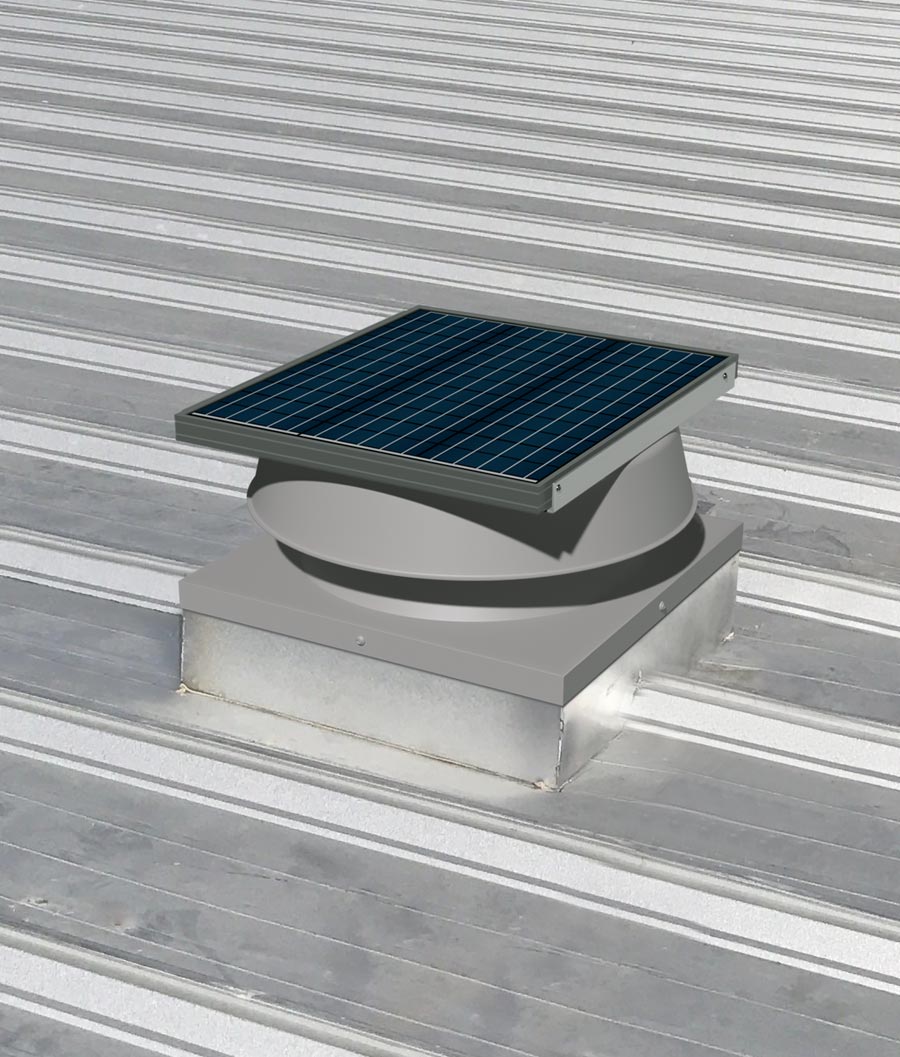

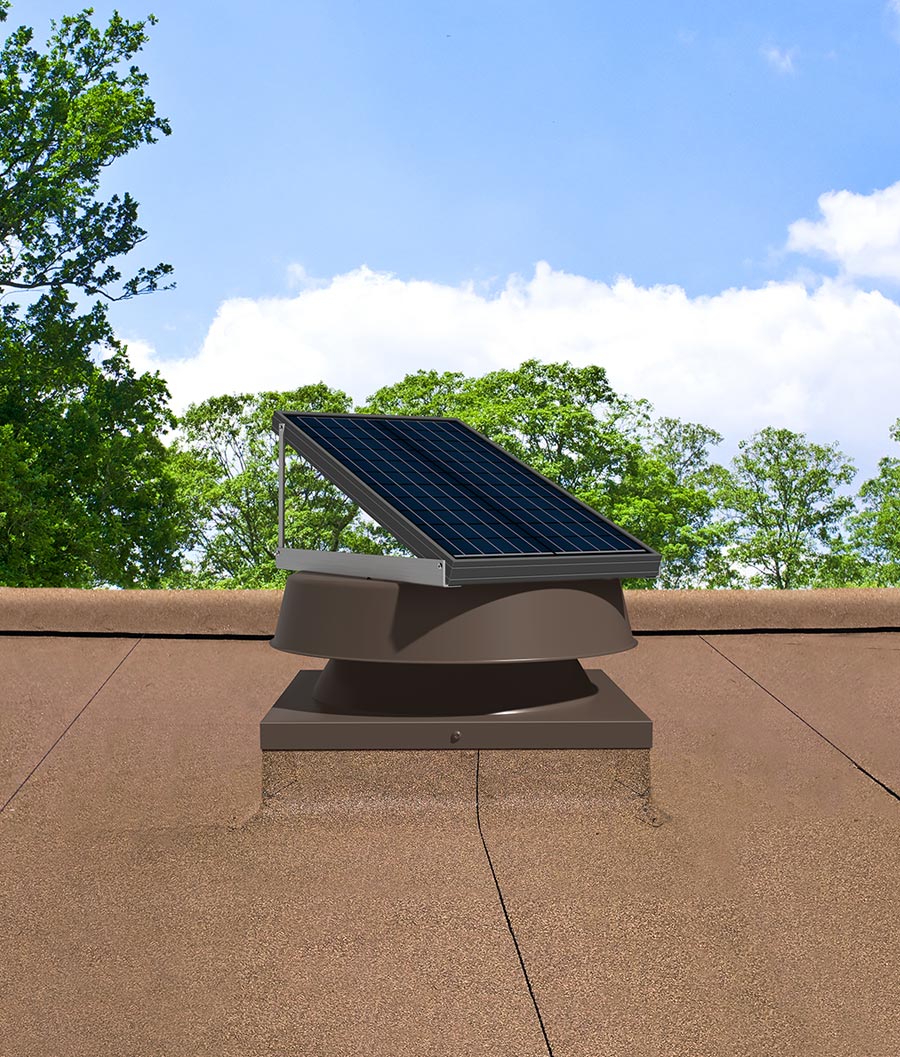

Curb Mounted Solar Attic Fan
for Flat Roofs
Key Features
- Installs over a pre-built curb or Kennedy SAF-ACWU
- Features an adjustable solar panel - collects maximum sunlight on all roof slopes
- Remote panel model available - used when ideal fan location is on shady part of roof
- Easy Install - fully functional right out of the box
- Powder coated both inside and out to prevent corrosion
- Available in Gloss Bronze, Black Satin or Mill Finish
Manufactured with the Highest Quality Components Learn more
- Solar Panel - highly efficient featuring PERC Solar Cells
- Housing - constructed of 1100 series, seamless commercial pure grade aluminum
- Direct Current Motor - sits in an isolation bracket, quiet and long-lasting
- Fan - precision balanced 5-wing fan blade, non-corrosive aluminum
- Animal Screen - stainless steel keeps out debris, bugs, birds and small rodents
- Florida Building Code Approved - learn more
Common Applications
- Mostly used on industrial buildings or commercial offices
- Must be installed on a pre-built curb
Accessories Learn more
- Garage Exhaust Kit with or without a Radiation Damper
- Thermal Snap Switch and Fire Safety Switch
Adjustable & Remote Panel Models

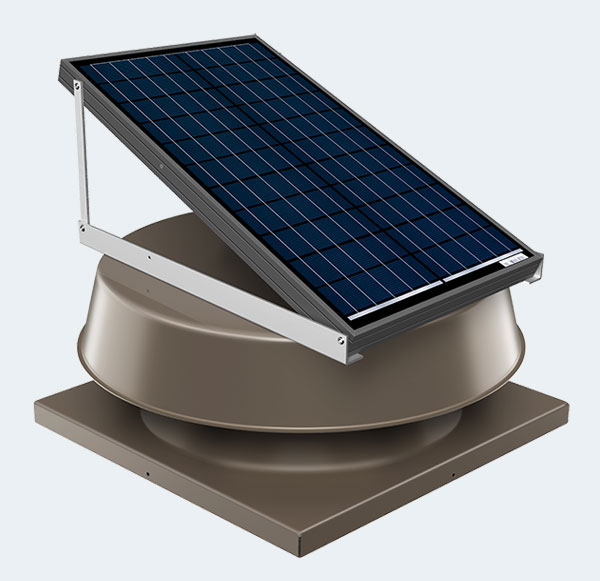

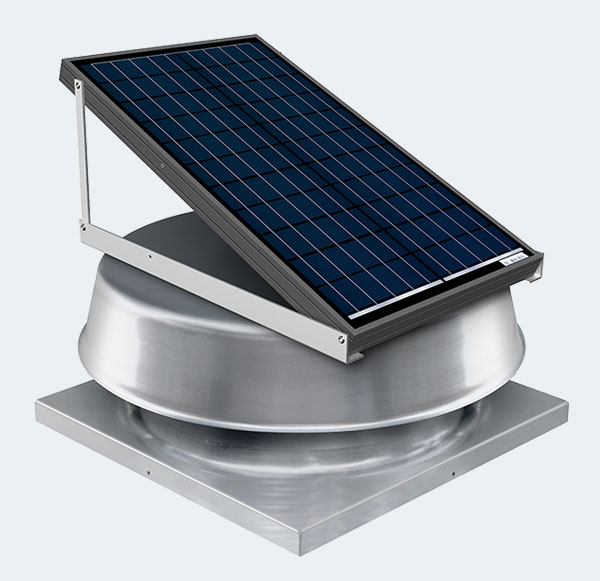

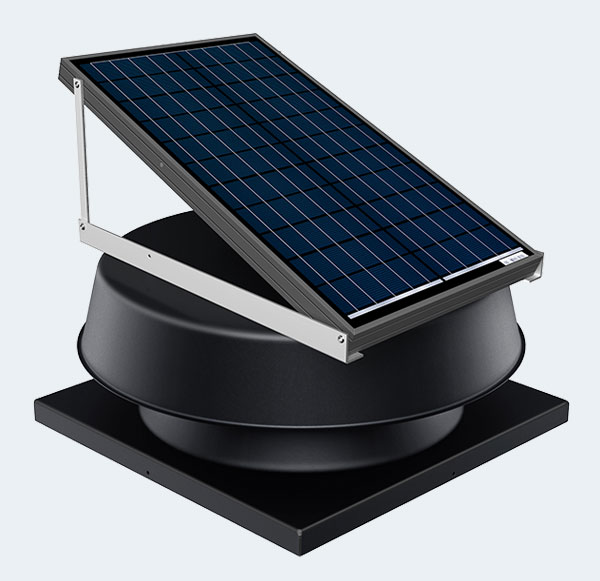

32 Watt
- Capacity: up to 1,560 cfms
- Venting Area: up to 2,200 sf
- Solar Panel Size: 14" x 22.625"
- Solar Panel Type: Adjustable
- Model #: SAF32CM
- Remote Panel: Available
-
Colors:
⬤ ⬤

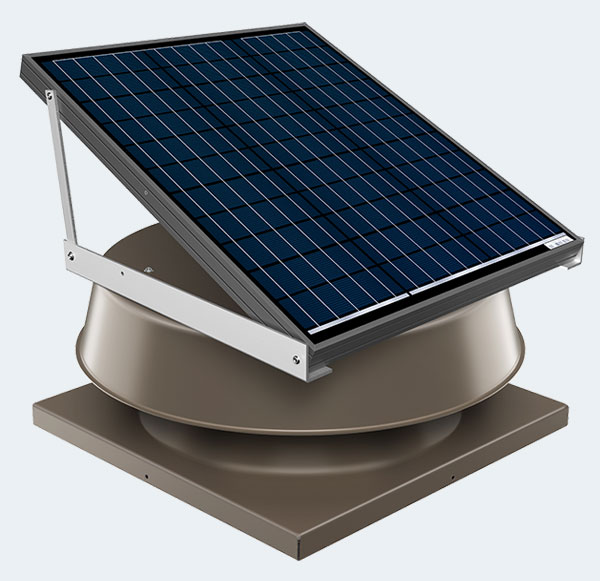

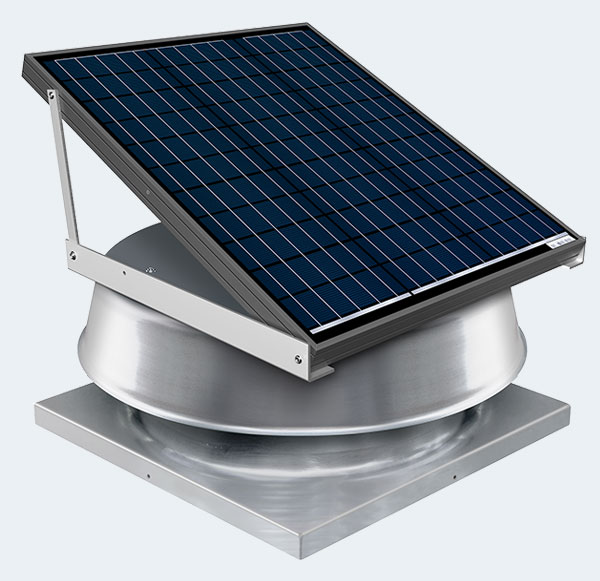

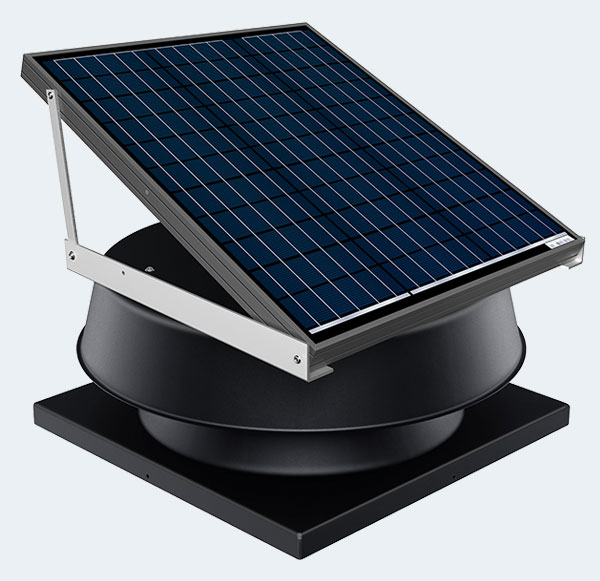

48 Watt
- Capacity: up to 1,881 cfms
- Venting Area: up to 2,825 sf
- Solar Panel Size: 20.125" x 21.25"
- Solar Panel Type: Adjustable
- Model #: SAF48CM
- Remote Panel: Available
-
Colors:
⬤ ⬤

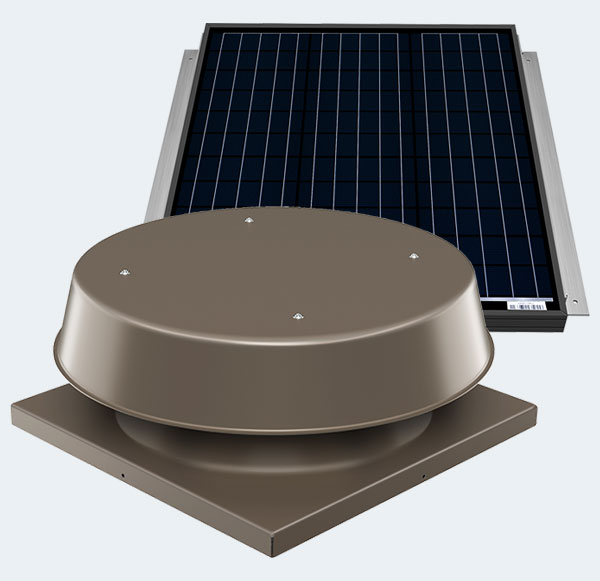

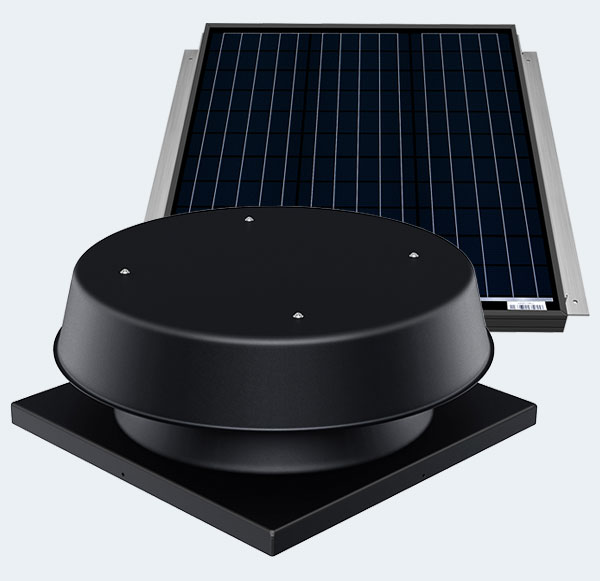

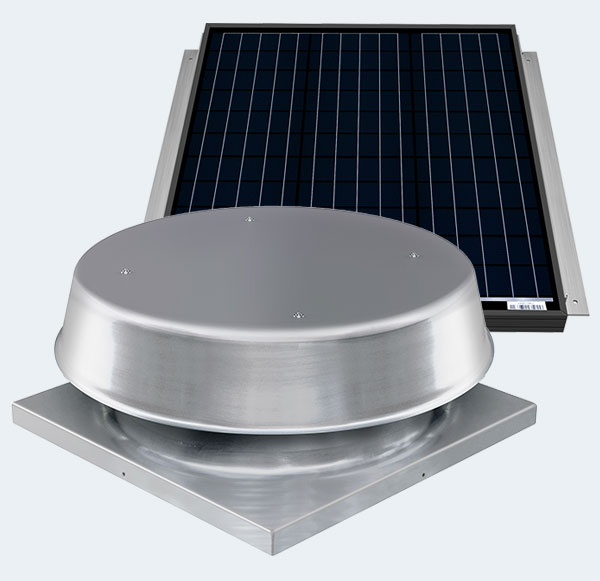

65 Watt
- Capacity: up to 2,105 cfms
- Venting Area: up to 3,350 sf
- Solar Panel Size: 26.5" x 25.75"
- Solar Panel Type: Remote
- Model #: SAF65CM-Remote
- Adjustable Panel: N/A
-
Colors:
⬤ ⬤
FIXED PANEL

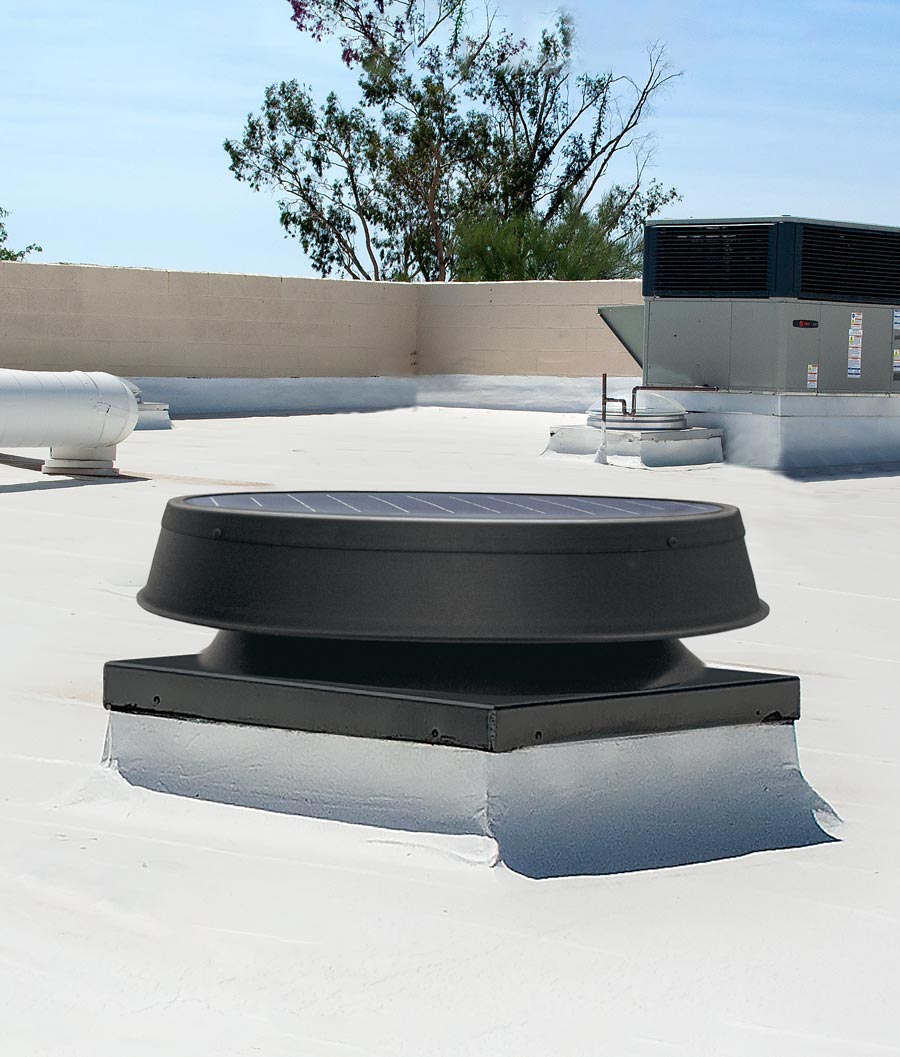

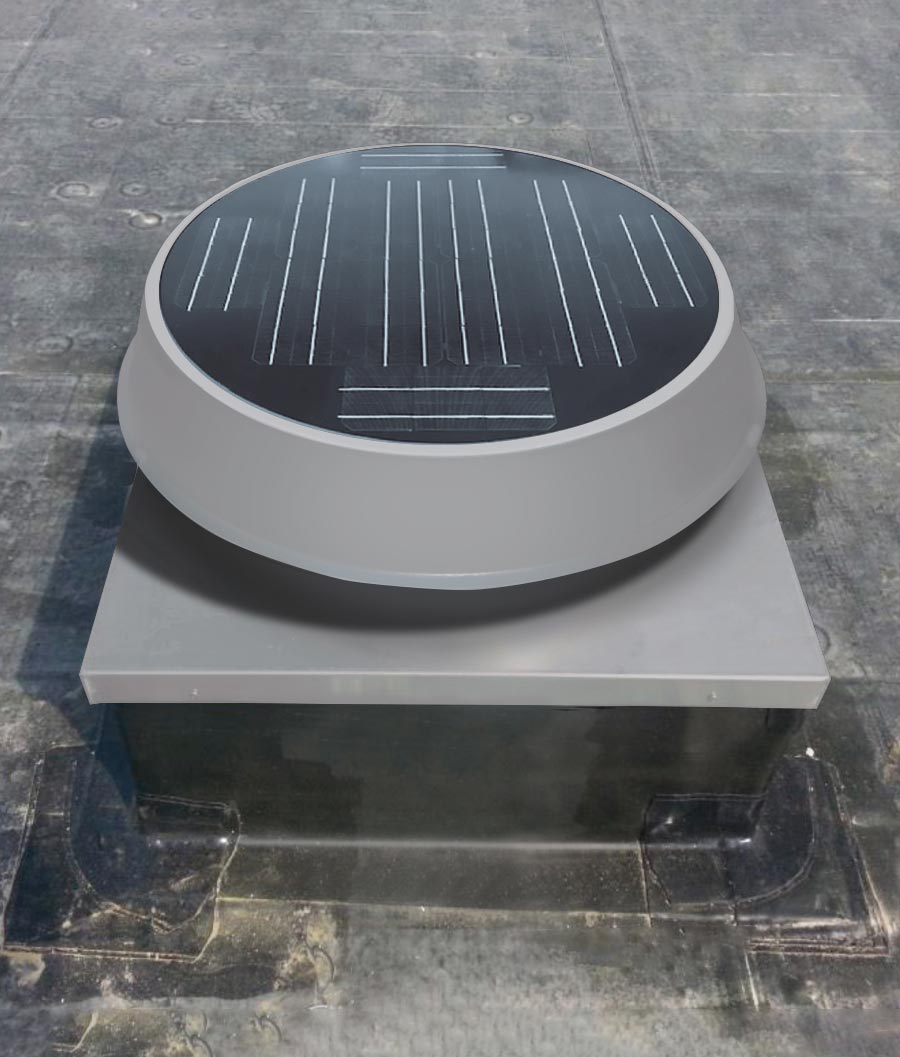

Low Profile Curb Mounted Solar Attic Fan
for Flat Roofs
Key Features
- Installs over a pre-built curb or Kennedy SAF-ACWU
- Features a compact, roof-hugging design that is aesthetically pleasing
- Designed to withstand severe hurricane and tornadic winds without panel adjustment
- Available in 35 watt size with a venting capacity of 1,599 cfms (2,400 sf)
- Solar panel is built into the fan housing and can be can easily be removed for cleaning or maintenance
- Easy Install - fully functional right out of the box
- Powder coated both inside and out to prevent corrosion
- Available in Gloss Bronze, Black Satin or Mill Finish
Manufactured with the Highest Quality Components Learn more
- Solar Panel - highly efficient featuring PERC Solar Cells
- Housing - constructed of 1100 series, seamless commercial pure grade aluminum
- Direct Current Motor - sits in an isolation bracket, quiet and long-lasting
- Fan - precision balanced 5-wing fan blade, non-corrosive aluminum
- Animal Screen - stainless steel keeps out debris, bugs, birds and small rodents
- Florida Building Code Approved - learn more
Common Applications
- Mostly used on industrial buildings or commercial offices
- Must be installed on a pre-built curb
Accessories Learn more
- Garage Exhaust Kit with or without a Radiation Damper
- Thermal Snap Switch and Fire Safety Switch

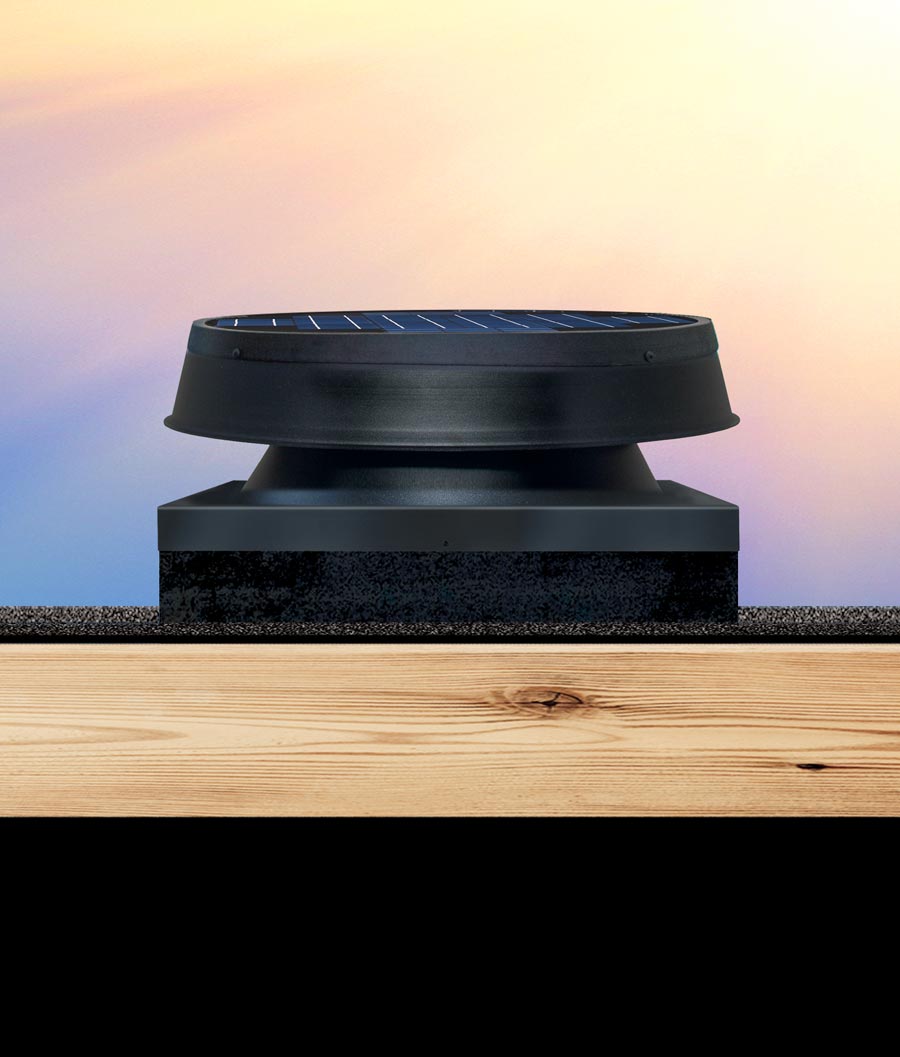

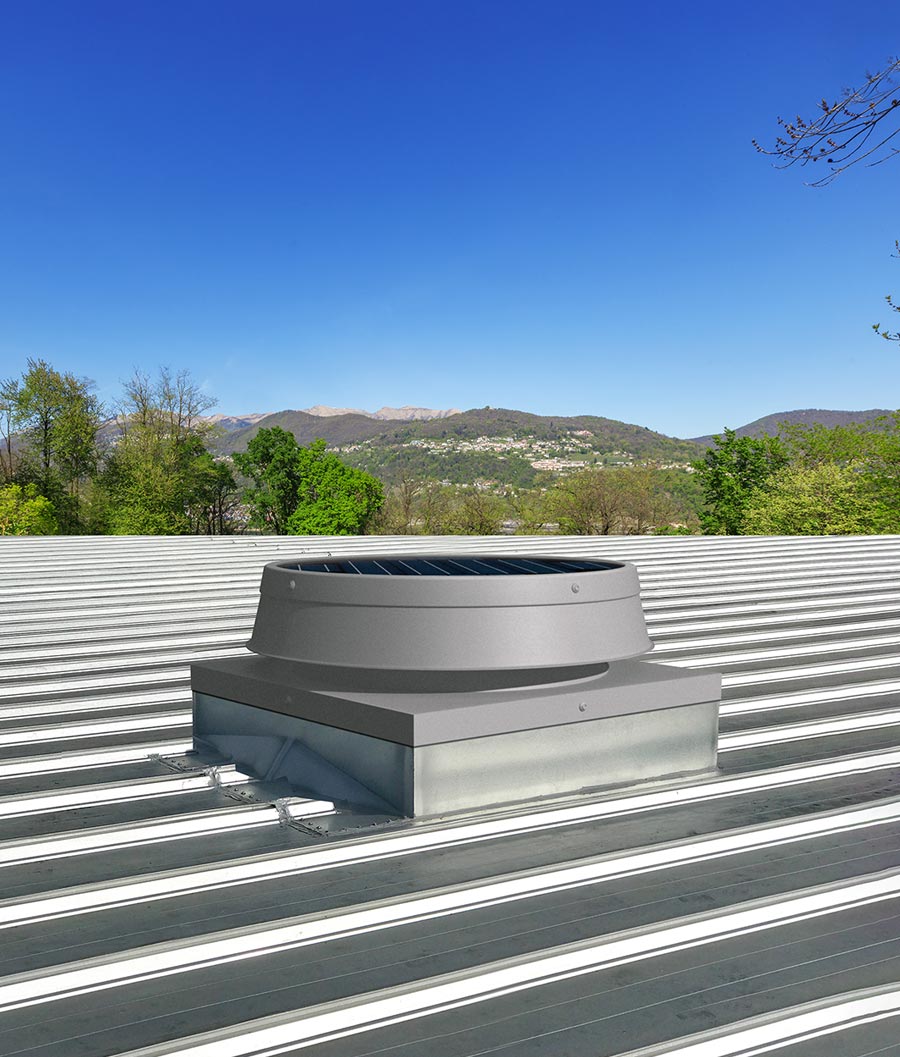

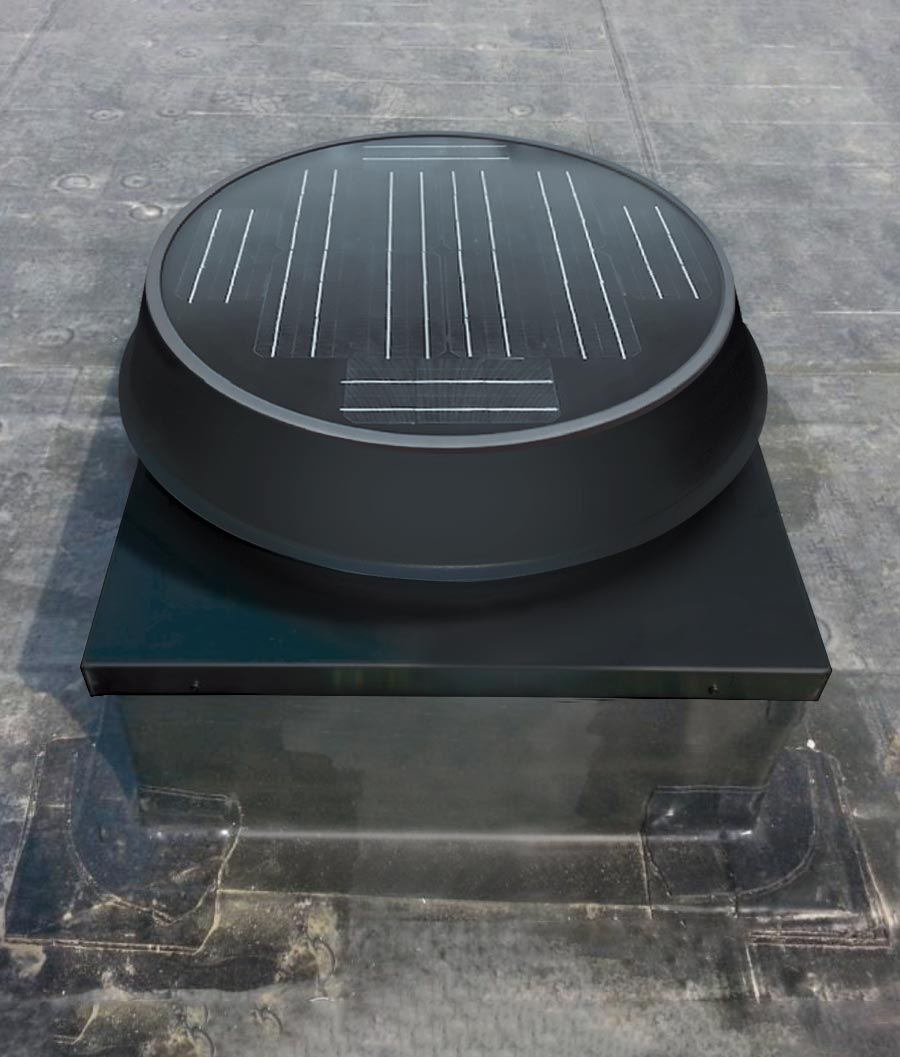

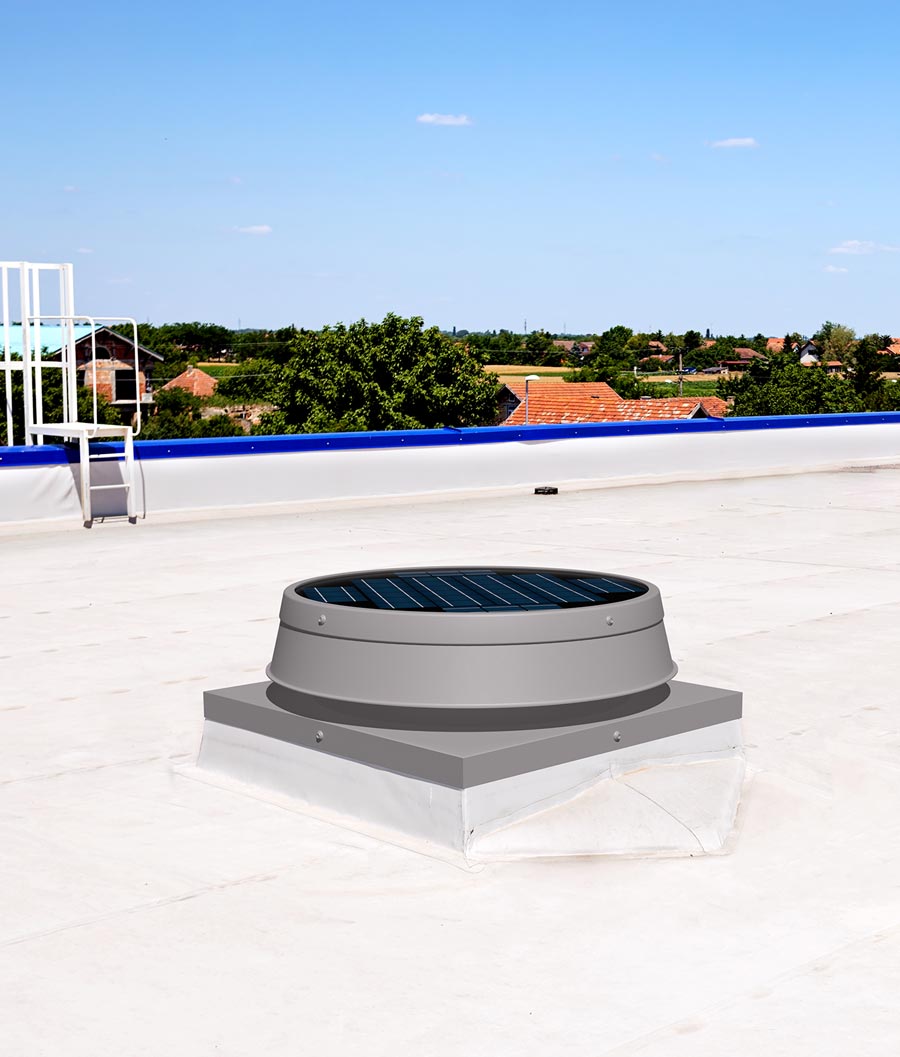

Fixed Panel, Ultra Low-Profile Model
Our Ultra Low Profile Solar Attic Fan model is a compact, extrememly durable unit that has been hurricane tested and approved. It's very low profile ensures that it can sustain very harsh winds.
FIXED PANEL MODEL ADVANTAGES
- Features a ultra compact, aesthetically pleasing design
- Unit stands up to hurricane and tornado wind velocities without panel adjustment
- Solar panel is integrated into the fan housing and can be easily removed for cleaning
- Underwent several high wind and water tests to earn a Hurricane Approved Rated

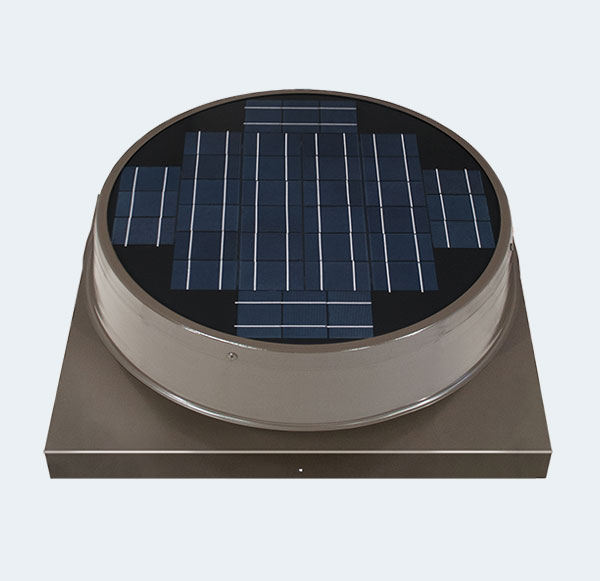

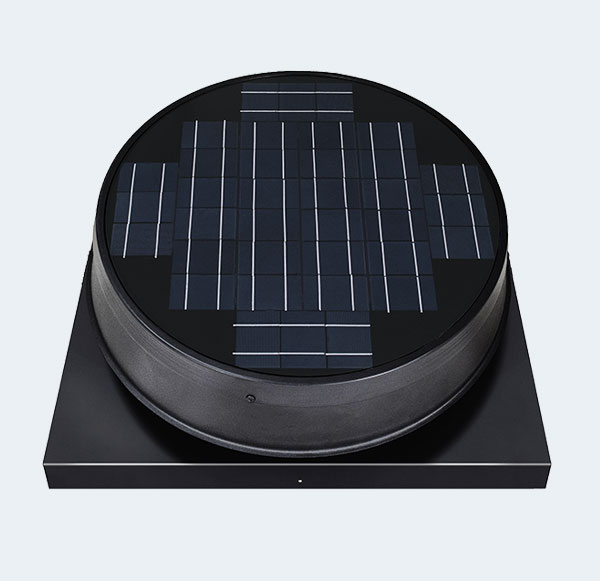

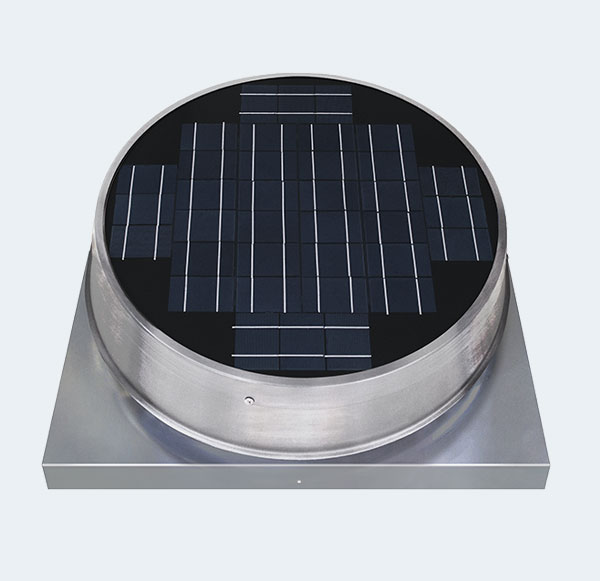

35 Watt Ultra Low Profile
- Capacity: up to 1,599 cfms
- Venting Area: up to 2,400 sf
- Solar Panel Size: 20.5" Diameter
- Solar Panel Type: Fixed
- Model #: SAF35LPCM
-
Colors:
⬤ ⬤

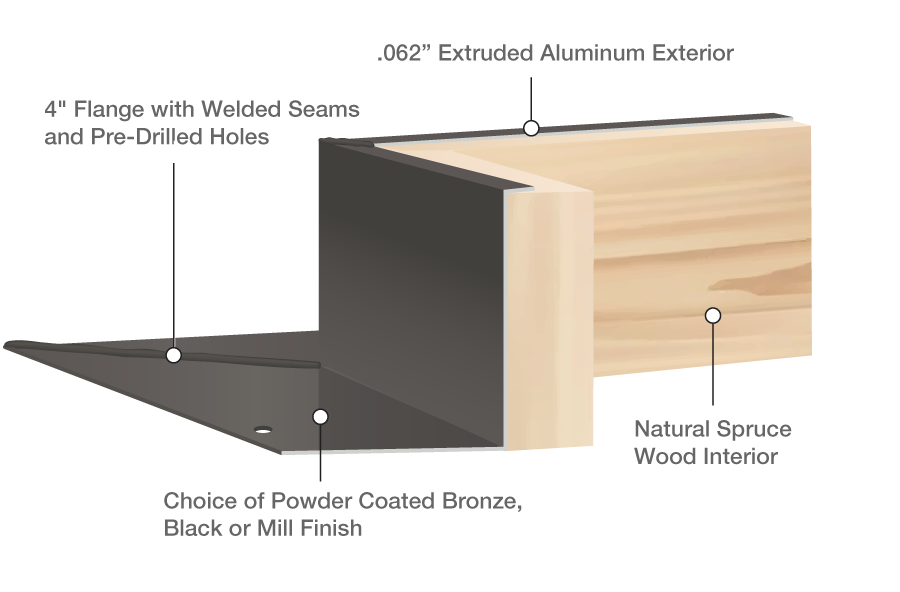

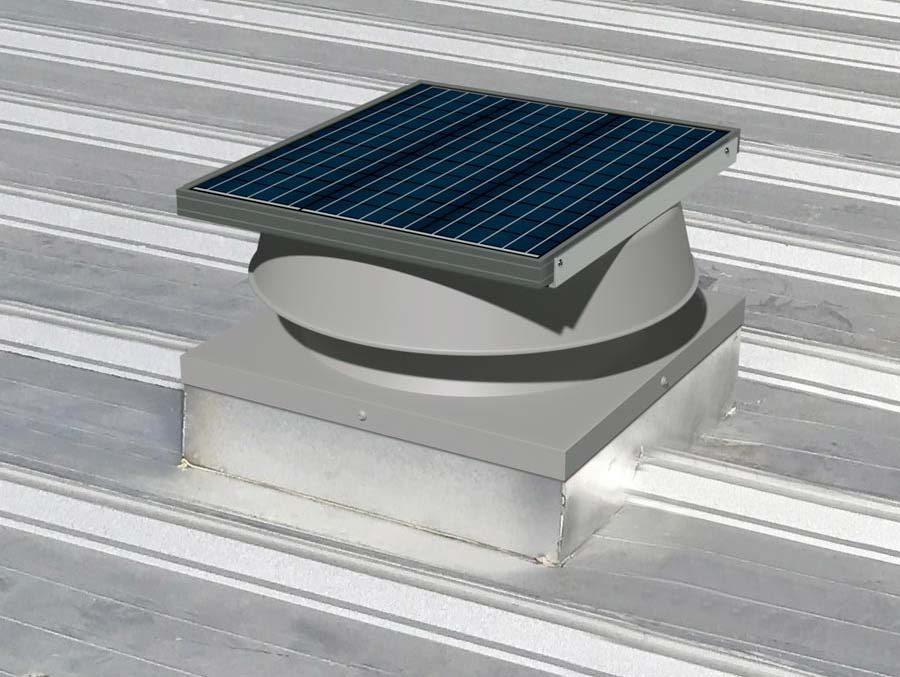

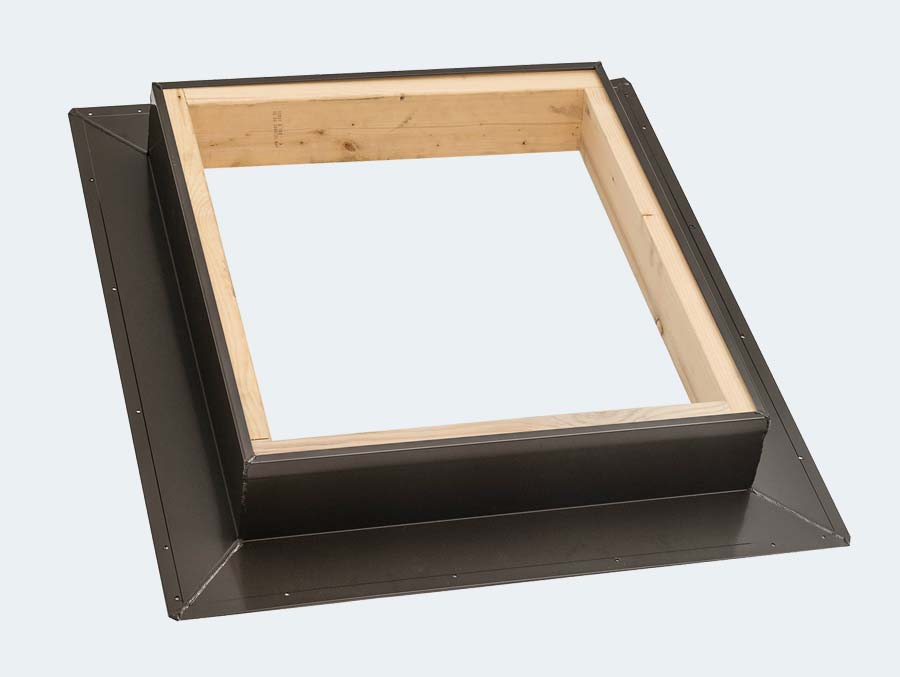

SAF-ACWU Solar Attic Fan Aluminum Curb
Aluminum curb for Kennedy solar attic fans with wood interior available in either 4" or 6" high curb
Heavy-duty Aluminum
Features .062” extruded aluminum exterior with welded corners and powder coated bronze for extra durability - mill finish also available.
Insulated
Natural spruce wood interior.
Pre-drilled
Aluminum flange includes pre-drilled screw holes for easy installation.
ACW Key Features
- 20.75" x 20.75" curb - sized to fit all Kennedy solar attic fans
- Fits all roof pitches in choice of 4" or 6" high curb
- .062" extruded aluminum frame with welded corners
- 4" predrilled integral nailing flange for easy, leakproof installation
- Natural spruce wood interior
- Choice of powder coated bronze, black or mill-finish exterior
- Individually boxed
Pre-Built Curb Advantages
- Saves time and simplifies any skylight installation
- Superior to galvanized metal or site-built curbs
Usage & Warranty
- Fits Kennedy SAF32CM, SAF48CM, SAF65CM and SAF35LPCM solar attic fan models
- 10-Year limited warranty against defects in workmanship and materials
